FIRMA 2050KV BRUSHLESS MOTOR

FIRMA 2050KV BRUSHLESS MOTOR

1.050,00 DKK

Ventes

stk.
Model/Varenr.: SPMXSM1700

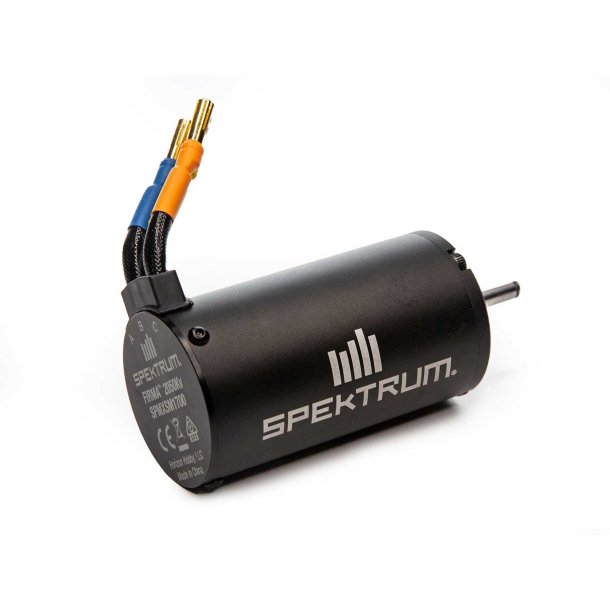

The Firma 2050Kv brushless motor is a perfect option for 1/7 and 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

Features

  • Perfect upgrade for 1/7 and 1/8 scale racers and bashers
  • Safe-D Shaft provides a C-clip locking point to prevent pinion gear slip
  • High efficiency design
  • 6S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 4mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 5mm shaft





Connector Type 4mm Bullet
Efficiency 85%
Motor Size 4074-2050Kv Brushless Inrunner
Product Length 2.9" (74 mm)
Application 1/8 scale buggy, truggy or monster trucks with 3S-6S LiPo setup
Number of Poles 4
Output 5050W
Product Weight 0.92lbs (415g)
Shaft Diameter 0.196" (5 mm)
Size 4074
Motor Design Inrunner
Maximum Continuous Current 62A
Motor Type Brushless - Sensorless
Outer Diameter 1.57" (40 mm)
Input Voltage 12 - 25.2V
RPM/Volt (Kv) 1900Kv
