Product Details
In The Box

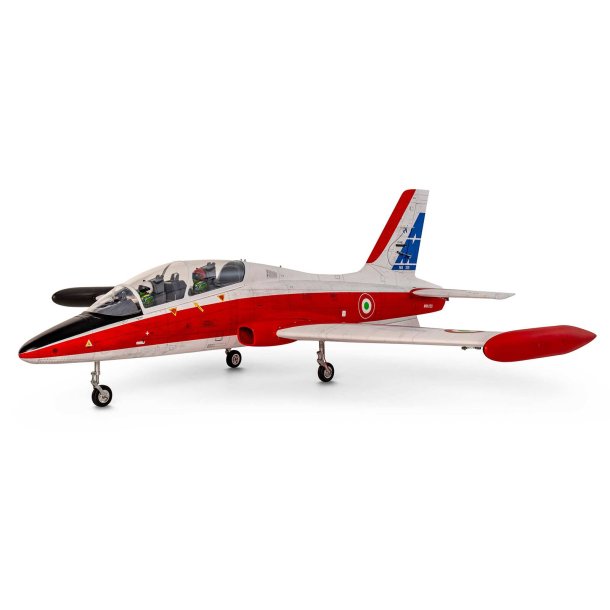

- (1) Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF, 84"
- (1) User Manual
Needed to Complete
- (1) 60-86N turbine
- (4) Standard Digital High Torque Servos
- (4) Mini Digital High Torque Servos
- (1) Full-range, 8+ channel transmitter and receiver
- (1) Receiver Battery
- (1) ECU Battery
- (1) Air Trap
- Tools and adhesives
- Field Equipment
Introduction
Developed in the 1970s, the Aermacchi MB-339 is an advanced military trainer and light attack aircraft. Produced by Alenia Aermacchi SpA of Varese, Italy, it has been widely exported and is in service with the air forces of Argentina, Dubai, Italy, Malaysia, New Zealand, and many more. It saw action between Eritrea and Ethiopia in the late 1990s and during the Falklands War in the early 80s. This version is finished with a scale military trim scheme featuring printed covering that includes panel lines, rivets, weathering, and other scale details.
Overview
The first Hangar 9 turbine jet is a perfect way for experienced pilots to move into turbine-powered models. It’s also ideal for seasoned jet pilots looking for great value in a well-behaved platform with excellent performance and easy handling. The full-scale Aermacchi MB-339 was designed and manufactured in the 1970s by Alenia Aermacchi SpA as a military jet trainer and light attack aircraft. This ARF aircraft has been designed to meet the need for an easy to fly yet fully aerobatic jet model suitable for 60-86N size turbine engines. It features lightweight balsa and plywood construction with carbon fiber reinforcements, plus this version is finished with a scale trim scheme featuring printed covering that includes panel lines, rivets, weathering, and other details.
Features
- Scale trim scheme featuring printed covering with panel lines, rivets, weathering, and other details
- Carbon fiber reinforced wood construction provides a light and strong airframe
- Two-piece, bolt-together fuselage featuring a removable nose section
- Multiple hatches allow easy access to the turbine and other components
- Large top-hatch offers access to the electronics and fuel system
- Detailed cockpit includes two painted pilot figures and instrument panels
- Includes electric retract set with trailing link struts, wheels, and electric brakes
- Two-piece, plug-in wing for easier transport and storage
- Dual-wall stainless steel tail pipe included
- Complete hardware kit includes fuel tank
- Removable stabilizer for even easier storage and transportation
- Includes optional-use and easy to install/remove tip tanks
Elektrisk optrækkelig understel medfølger
Product Specs
Minimum Required Radio 8+ channel
Radio Sold Separately
Battery Sold Separately
Engine Size 60-86N Turbine
Product Length 79" (2007 mm)
Product Weight 23 lbs (10.43Kg)
Speed Control Sold Separately
CG (Center of Gravity) 4-1/2- 6" back from leading edge of wing at root
Completion Level Almost Ready-To-Fly
Approximate Assembly Time 20+ Hours
Flaps Yes
Material Wood
Retracts
Included Power Type
Turbine
Servos Sold Separately
Skill Level Level 4
Trim Scheme Colors White, Red, Blue
Wingspan 84" (2134 mm)
Charger Sold Separately
Receiver Sold Separately
