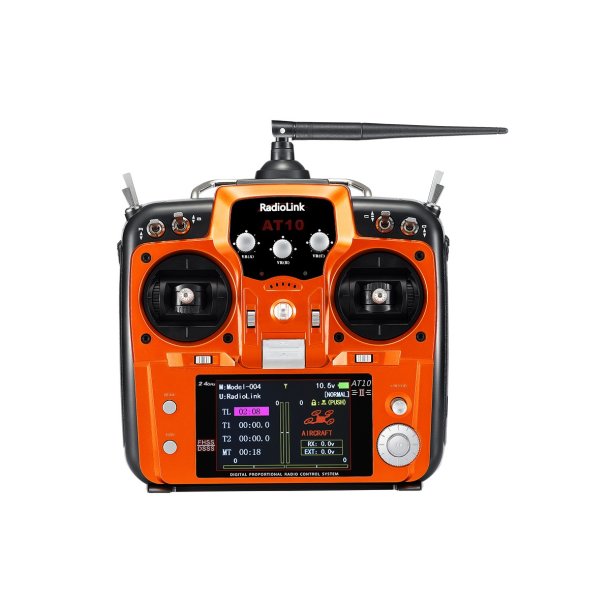

Radionlink AT10II radioanlæg orange med 12 kanaler m. 12k modtager

AT10II

12 Channels

Ideal for Professional Aerial Drones, Agricultural Drones and Industrial Drones

Easy Enough for a Beginner to Understand and Sophisticated Enough for an Expert

Best Bang for the Buck

DSSS and FHSS Hybrid Spread Spectrum

DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 12 channels of AT10II.

The actual control distance of AT10II is 4000 meters air.

4KM (2.5 Miles) Range*

7dBi High Gain* transmitter antenna and low signal noise with a channel bandwidth* of 5.0 MHz ensure the control distance of AT10II up to 4000 meters.

Receiver R12DS, with diversity antenna, support SBUS and PWM signal output simultaneous, signal coverage all around, never afraid of hilly terrain.

AT10II is an excellent choice for professional aerial, agricultural, and industrial drones.

* Maximum range is tested in an unobstructed area free of interference

* High Gain：Antenna gain is a reflection of the maximum distance, the higher the gain the farther the range.

* Bandwidth：The difference between the upper and lower frequencies in a band of frequencies. The AT10II uses 2400MHz to 2483.5MHz.

Quickly Adapts to All Types of Models

Easy enough for a beginner to understand and sophisticated enough for an expert.

Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, and Robot.

Multiple functionalities for each model class. Five programmed flight characteristics for each model.

Completely customizable switches (8), dials (3), and sliders (2) to meet their specific needs.

Transmitter automatically switches layout depending on the selected mode.

High Quality Components and Efficient Circuit Design Ensures Maximum Precision

All-new 4096 IC circuit minimizes servo jitter.

Optimal PCB layout design and the same potentiometer of FUTABA produce a very stable signal output, that maximum PWM jitter is 1.84us with a standard of just 0.5us, which is critical to precision flying.

Real-time Built-In Telemetry

Real-time model data allows users to receive crucial information on the display of AT10II.

A large 5 x 3 ½” screen with sixteen colors is easy to read.

When paired with the voltage telemetry module PRM-01, the model voltage will display.

With the OSD information telemetry module PRM-03 and flight controller crossflight, PIXHAWK, Mini Pix, TURBO PiX, and APM,

model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance will display.

When paired with the voltage telemetry module PRM-01, the model voltage will display.

With the OSD information telemetry module PRM-03 and flight controller PIXHAWK, Mini Pix, TURBO PiX, and APM,

model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance will be displayed.

Output RSSI Value From Receiver To FPV Monitor

Real-time RSSI Telemetry When Racing

* How to output RSSI value from receiver to FPV when the transmitter is AT10II/AT10 and the flight controller is F4/F7?

* How to output RSSI value from receiver to FPV when the transmitter is AT10II/AT10 and the flight controller is PIXHAWK/Mini Pix/TURBO PiX？

Compatible with SBUS, PPM and PWM

SBUS, PPM, and PWM can operate simultaneously for seamless user control.

Standard receiver R12DS packed is the receiver with SBUS and PWM signal output.

AT10II is compatible with R6DSM, R6DS, R9DS, and R12DSM receivers of RadioLink except for R12DS.

Compatible receivers cover a wide range of aircraft to meet the customer’s most demanding applications.

USB Based Upgrades

AT10II is easy to update to the latest firmware with a USB cable and a computer.

Features

① Twelve channels (5 through 12 programmable by user)

② User name and model setup can be saved (up to 15 aircraft)

③ RSSI and Telemetry

④ Transmitter output greater than 100mW

⑤ Operating voltage 7.4 to 15.0v, amperage <105mA

⑥ Adjustable display brightness and contrast

⑦ Multiple alarms

⑧Fail Safe system: engages when a clean signal is lost or if the receiver battery is low

⑨ Servo reversing

⑩ Servo end-point adjustment

⑪ Adjustable servo travel limit (prevents pushrod jamming)

⑫ Servo Cycle function helps locate servo problems

⑬ Adjustable gimbal-stick length and tension

⑭ Dual, Triple and Exponential rates

⑮ Digitally controlled Trim switches

⑯ Sub-Trim program changes the servo neutral position

⑰ Compatible relievers: R12DS (Std pack), R12DSM, R9DS, R6DS and R6DSM
