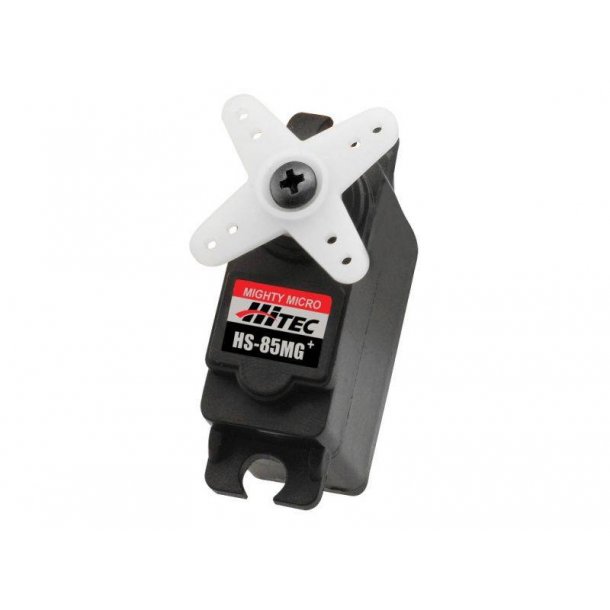

HS-85MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.16 ~ 0.14
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 8 mA
No Load Operating Current Draw 240 mA
Stall Current Draw 1,200 mA
Dead Band Width 8 µs
Physical Specifications
Dimensions (Inches) 1.14 x 0.51 x 1.18
Dimensions (Metric) 29.0 x 13.0 x 30.0
Weight (Ounces) 0.77
Weight (Gram) 21.9
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
