Sävox servo SW-0230MG plus std, str. 8kg træk 0,13s speeed metal gear

349,00 DKK

Ventes

stk.

Model/Varenr.: SW-0230MGPLUS

Beskrivelse

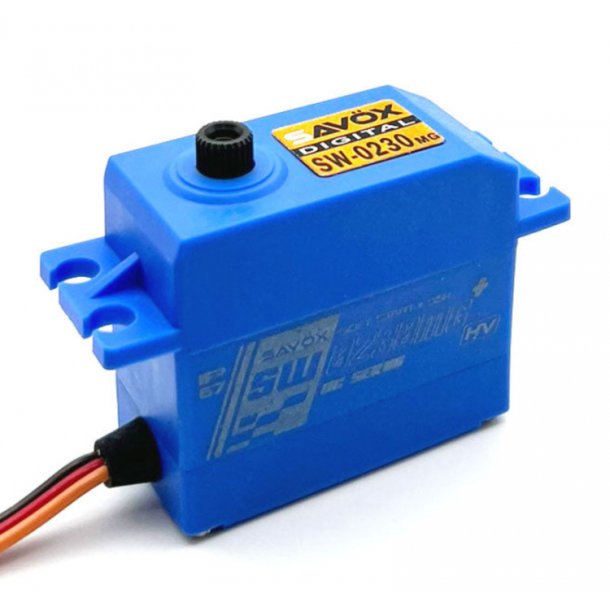

SAVÖX SW-0230MGPLUS - Water Proof High Voltage Metal-Geared Standard-Sized Servo

The SW-0230MG-PLUS is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition - rain or snow.

Features:

New: Soft Start
New: Sanwa SSR compatible
Strong metal gear train for added durability
Waterproof case design
Capable of HV operation
Ideal for cars, truck, and boats subject to water or snow

Specifications:

Torque @ 6V: 6.5kg/cm
Torque @ 7.4V: 8kg/cm
Speed @ 6V: 0.16 sec/60 deg
Speed @ 7.4V: 0.13 sec/60 deg
Dimensions L x W x H: 41.8 x 20.2 x 38mm
Weight: 60g

Technical Details:

Operating Temperature: -10° to 50°C
Running Current (no load): 100mA @6.0V, 120mA @7.4V
Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
