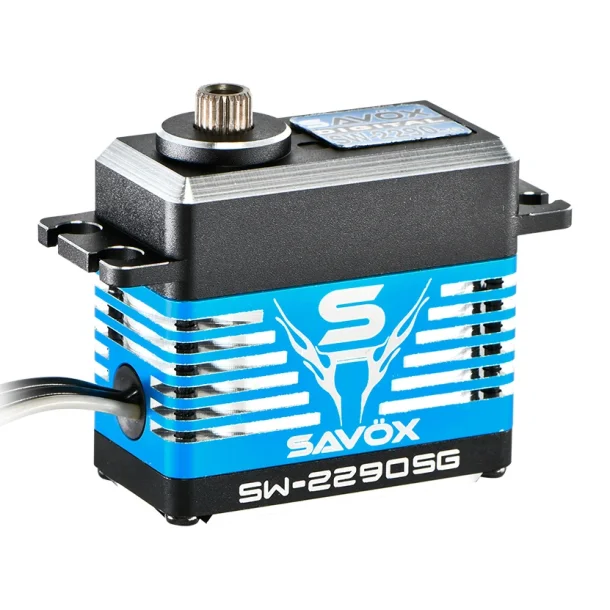

Savöx SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• Waterproof (IP67)
• Full Aluminum Case
• 3 Precision Ball Bearings
• Unique steel gears

• Specifications:
• Line: BLUE LINE
• Application: CAR/BOAT
• Servo Size: Standard
• Operating Voltage: 6.0V-8.4V
• Speed @ 6.0V: 0.16s/60°
• Torque @ 6.0V: 45.0kg/cm
• Speed @ 7.4V: 0.13s/60°
• Torque @ 7.4V: 55.0kg/cm
• Speed @ 8.4V: 0.11s/60°
• Torque @ 8.4V: 70.0kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Patented Lightweight Brushless
• Case Type: Aluminum
• Protection: Waterproof (IP67)
• Dimensions (LxWxH): 41x21x39.9mm
• Weight: 88g
• Gear Type: Special Steel
• Compatibility: Normal
• PCB Board: 12bit 4096, Softstart, Lock protection
• Horn Gear Spline: 25T (Φ6)
• Rotating Direction: Counterclockwise (when 1000→2000μsec)
• Max Travel: ~130° (when 900→2100μsec)
• Operating Travel: 100° (when 1000→2000μsec)
• Neutral Position: 1500μsec
• Bearing: 3x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 22AWG
• Cable Length: 450mm ±5 mm
• Connector: JR
• Stall Current @ 6.0V: 7200mA
• Operating Current @ 6.0V: 200mA
• Stall Current @ 7.4V: 9200mA
• Operating Current @ 7.4V: 220mA
• Stall Current @ 8.4V: 10500mA
• Operating Current @ 8.4V: 250mA
• Idle Current: 5mA
• Dead Band Width: 3-5μsec
• Frequency Range: 50-360Hz
• Control System: Pulse Width Modification
• Operating Temperature: -10°C to 50°C
