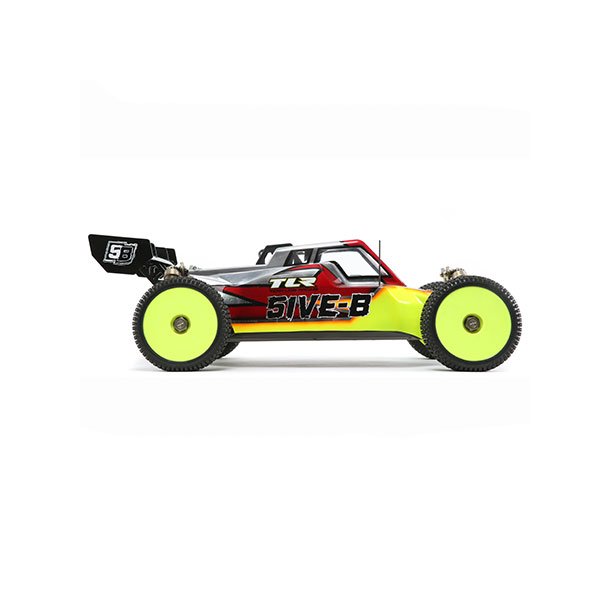

5IVE-B Race Kit: 1/5 4WD Buggy

Key Features

Purpose-built, racing kit based on the 8IGHT platform
Hard-anodized, 5mm 6061-T6 aluminum chassis plate
Heavy duty brakes
Dual-steering-servo radio tray
Cab-forward racing body
Racing wing with removable wicker bill
Aluminum clutch carrier and center-diff case
Hard-anodized, 24mm aluminum shocks with bleeder caps
Hard-anodized aluminum shock towers with multiple mounting holes
Light, one-piece, glue-style wheels
Specially designed air filter for racing engines
Protective axle boots
Adjustable toe and anti-squat plates

Ball Bearings:    Full Rubber Seal Ball Bearings in Car, Metal Shield for Clutch housing
Body:    Clear
Brakes:    Front and Rear Disk Brakes
Chassis:    5mm 6061-T6 Aluminum
Completion Level:    Kit
Drivetrain:    4WD
Final Drive Ratio:    9.59:1
Front Track:    15.25 in (388mm)
Fuel Tank Capacity:    27.1 oz (800cc)
Gear Pitch:    1.5 Module
Ground Clearance:    3.5 in (88.9 mm)
Height:    12.13 in (308mm)
Internal Gear Ratio:    3.31:1
Length:    32.75 - 33.25 in (831.8 - 844.5mm) Total length can change based on the wing mount spacer used
Rear Track:    15.25 in (388mm)
Shock Type:    24mm, Hard Anodized, Oil Filled with Bleeder Caps
Size/Scale:    1/5
Spur Gear:    58T
Suspension:    4 wheel independant
Tire Compound:    Firm
Tire Diameter:    7.125 in (181mm)
Tire Tread:    Pin
Weight:    30.5 lbs (13.8kg)
Wheel Diameter:    5.5 in (139.7mm)
Wheel Width:    2.5 in (63.5mm)
Wheelbase:    22.75 in (577.9mm)
Width:    18.0 in (457.2mm)Needed To Complete

26-29cc Gas engine with Exhaust
2-Channel Radio System
(3) 1/5 Scale Servos
Receiver Battery Pack and Charger
Modeling Tools

Download vejledning her: http://www.tlracing.com/ProdInfo/Files/TLR05001-Exploded-View-and-Parts.pdf
