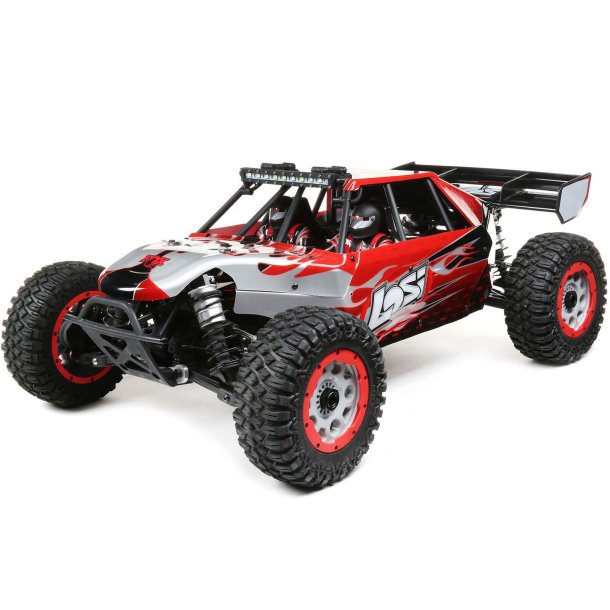

The original DBXL-E is the go to vehicle for large scale bashers and enthusiasts alike. Its agile handling, out of the box speeds and durability make it a fan favorite. Now the Losi® DBXL-E 2.0 continues to build on the legendary status!
Key Features
- Now includes a DX3 Transmitter
- Radio Tray designed for use with single or dual steering servos
- Electric Chassis specific chassis braces for increased durability and strength
- Gearboxes updated for improved drivetrain strength and stability
- Steering Rack with helical servo saver design
- Roof-mounted LED bar
In The Box
- (1) Losi® DBXL-E 2.0 Desert Buggy
- (1) Spektrum Firma® 160 Amp Brushless Smart ESC (installed)
- (1) Spektrum Firma 4-Pole 780Kv Brushless Motor (installed)
- (1) Spektrum™ DX3™ Radio System
- (1) Product Manual
Needed to Complete
- (2) 3S or (2) 4S 5000mAh+ 50C+ LiPo Batteries with EC5™ or IC5™ connector
- (1) Compatible Battery Charger
- (4) AA batteries for Transmitter
Product Specifications
Approximate Assembly Time | Less than 1 Hour |
Ball Bearings | Full set |
Battery | Sold Separately |
Body | Screen printed polycarbonate panels |
Brakes | Integrated with ESC |
Charger | Sold Separately |
Chassis | 0.16" (4mm) thick 6061-T6 alumininum with stiffening plate |
Completion Level | Ready-To-Run |
Connector Type | IC5 |
Differential | Fluid Filled, Bevel Gear, Sealed |
Drive Type | Forward/Brake/Reverse |
Drivetrain | 4WD |
Final Drive Ratio | 12.82:1 |
Gear Pitch | 1.5 MOD |
Ground Clearance | 2.75" (552mm) |
Internal Gear Ratio | 3.33:1 |
LiPo Compatibility | 6S,8S |
Max Battery Dimensions | 6.5 x 2 x 0.87" (165 x 52 x 22mm) |
Motor Size | 56113 4-pole 780Kv |
Motor Type | Brushless |
Pinion | 13T |
Power Type | Electric |
Product Height | 12.5" (318 mm) |
Product Length | 33.25" (845 mm) |
Product Weight | 28.3 lbs (12.8kg) w/o batteries, 30.5 lbs (13.8kg) with batteries |
Product Width | 19.5" (495 mm) |
Radio | Included |
Receiver | Included |
Scale | 1/5 |
Servos | Included |
Shock Type | Aluminum Oil Filled Coil Over |
Speed Control | Included |
Spur Gear | 50T |
Suspension | Independent |
Technology | AVC and SMART |
Tire Compound | Firm |
Tire Tread | Maxxis Creepy Crawler LT |
Top Speed | 50+ |
Vehicle Size | Large |
Vehicle Type | Desert Buggy |
Water-Resistant | Yes |
Wheel Hex Size | 24mm |
Wheel Width | 3.0 |
Wheelbase | 21.75" (552 mm) |
