Park 370 BL AL-Motor Motor; 1080U/V E-Flite

Park 370 Brushless Outrunner Motor, 1080Kv

Key Features

Great upgrade for Speed 280 and Speed 370 applications
Excellent motor for small 3D airplanes weighing 7–14 oz (200–400 g)
Slotted 12-pole outrunner design
Extremely lightweight—just 1.6 ounces
High-torque, direct-drive motor—no gearbox necessary
Motor mount, prop adapter and all hardware included
External rotor design with front shaft for easy mounting
Includes gold bullet connectors
Ideal for models requiring up to 110 watts of power
Overview

E-flite’s Outrunner series of high-quality brushless motors provides great efficiency and light weight—just 1.6 ounces. They’re ideal for small electric airplanes. such as the E-flite Tensor 4D.
Product Specifications

Type:    Outrunner
Size:    Replacement for 280/370
Bearings or Bushings:    One 3.175 x 7.94 x 3.6mm Bearing, and One 3.175 x 9.525 x 3.97mm Bearing
Recommended Prop Range:    9x4.7 to 10x4.7
Voltage:    7.2–12
RPM/Volt (Kv):    1080Kv
Resistance (Ri):    .19 ohms
Idle Current (Io):    .70A @ 10V
Shaft Diameter:    3.17mm (1/8 in)
Overall Length:    25mm (1.00 in)
Weight:    45 g (1.6 oz)
Overall Diameter:    28mm (1.10 in)
Diameter:    28 mm (1.1 in)
Length:    25 mm (1 in)
Continuous Current:    9A
Maximum Burst Current:    11A (15 sec)
Cells:    6–10 Ni-Cd/Ni-MH or 2–3 Li-Po
Speed Control:    10–20 amp brushless

Needed to Complete

Recommended
10–20A brushless ESC
9x4.7 to 10x4.7 prop

7.4V or 11.1V 480–1320mAh Li-Po

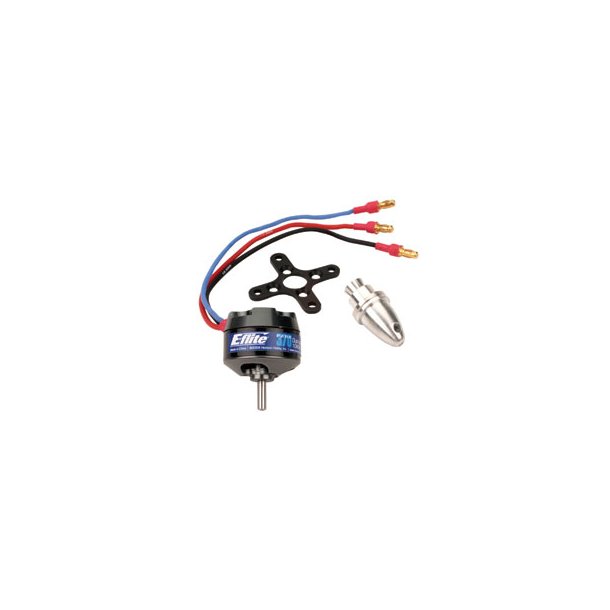

Kit Includes

Gold Bullet Connector Set,3.5mm (3)
X-Mount/Hardware: Park 370/400/450
Prop Adapter with Collet, 1/8"
